PIC16F84A Matrix LED Display

Introduction and Images

Please note that I used MPLAB Versio 8.3 to build the code. (Not the latest version). If you have any error while compiling the code, please use an old version of MPLAB or use the compiled HEX files to program. You can download MPLAB V8.3 from above link.

PIC16F84A Matrix LED Display Youtube Video

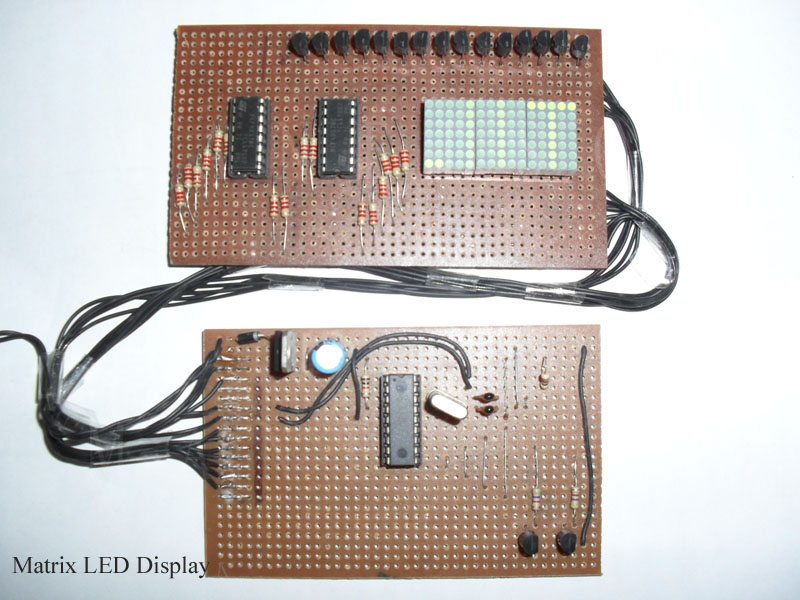

Completed circuit of the PIC16F84A Matrix LED Display

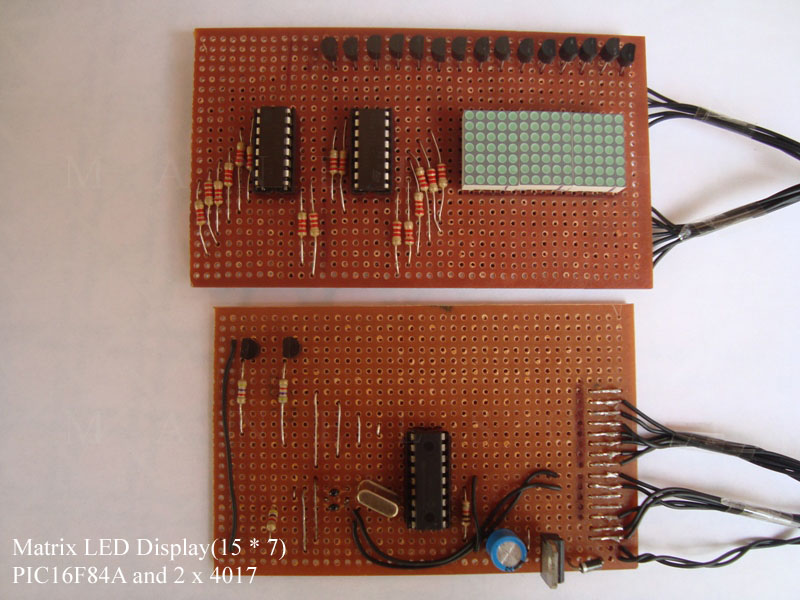

PIC16F84A Matrix LED Display When Running

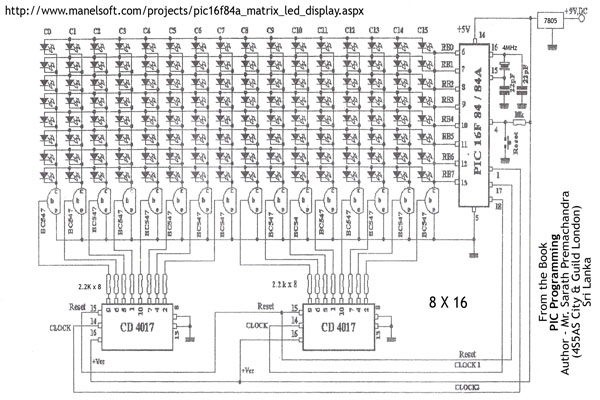

PIC16F84A Matrix LED Display Schematic

Extracted from the book - PIC Programming. Author - Mr. Sarath Premachandra.(4S5AS) City & Guild London. Credits goes to him.

Downloads for this Project

Download Schematic (PDF)
Download Schematic (ZIP)
Download Source Code and HEX
Display Custom Text Guide (PDF)
Display Custom Text Guide (ZIP)
All in one zip
Download MPLAB v8.3
